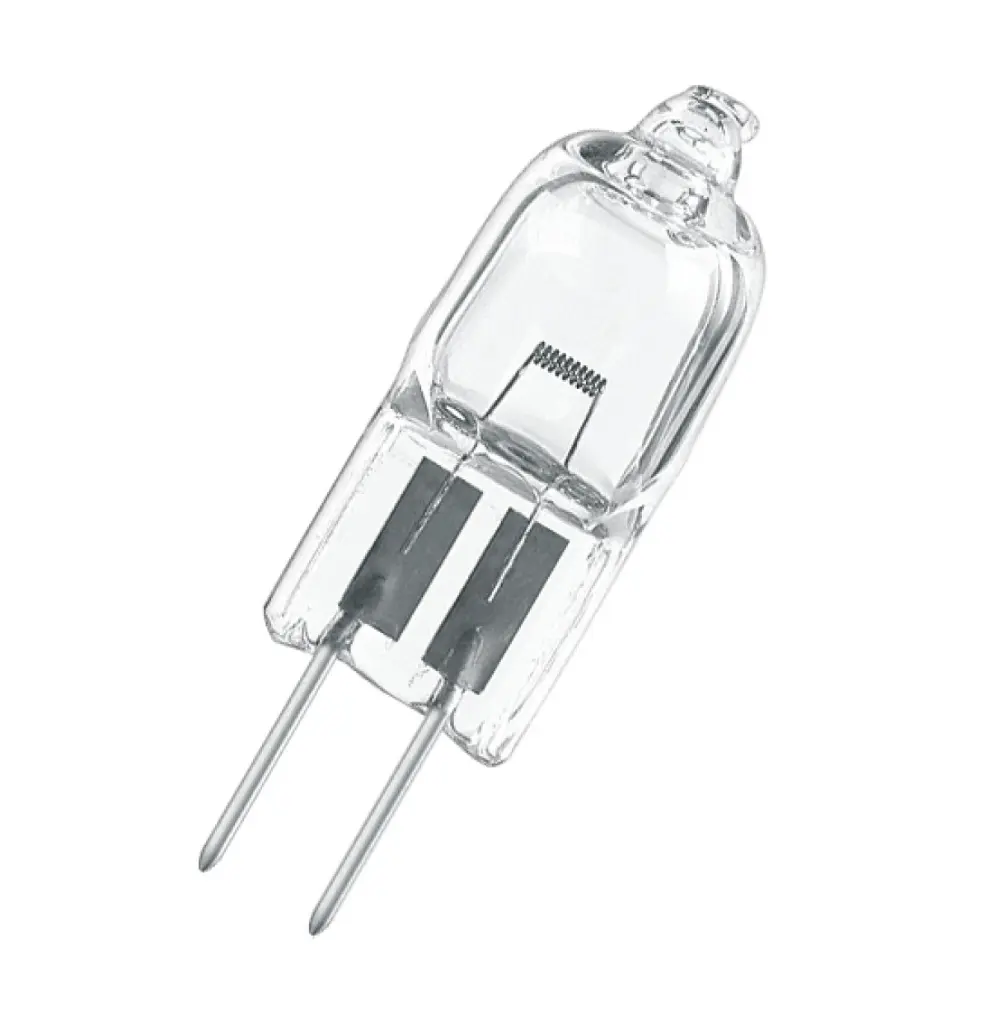

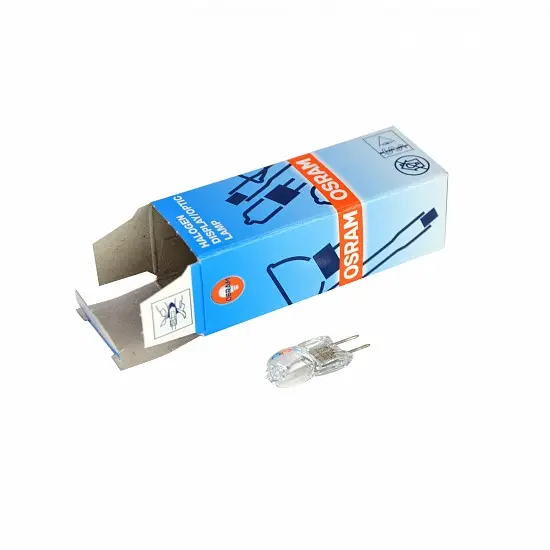

Osram 6v 10w Halogen Capsule bulb Germany

Product family features

• Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
• Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
• HLX tungsten halogen low-voltage lamp with or without reflector
• Dimmable (HLX)

Product family benefits

• Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
• Instant light (HLX)

Areas of application

• Lamps for special luminaires
• Medical fiber optics (HLX)

Technical Data

Country specific categorizations

Order reference: 64225

ANSI code: ESA/FHS

LIF: M/29

Electrical data

Nominal voltage: 6 V

Nominal wattage: 10.00 W

Photometrical data

Color temperature: 3200 K

Nominal luminous flux: 200 lm

Color rendering index Ra: 100

Dimensions & weight

Diameter: 9.5 mm

Length: 31.0 mm

Light center length (LCL): 19.5 mm

Filament length: 1.70 mm

Illuminated field: 1.7*0.65 mm²

Filament diameter: 0.7 mm

Lifespan: 100 h

Additional product data

Base (standard designation): G4

Minimum diameter of lamp enclosure: 9 mm

Capabilities

Burning position: s90

Application: Other

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

19-01-2022

Primary Article Identifier

4050300006758 | 4055462168290

Candidate List Substance 1

No declarable substances contained

Declaration No. in SCIP database

In work
