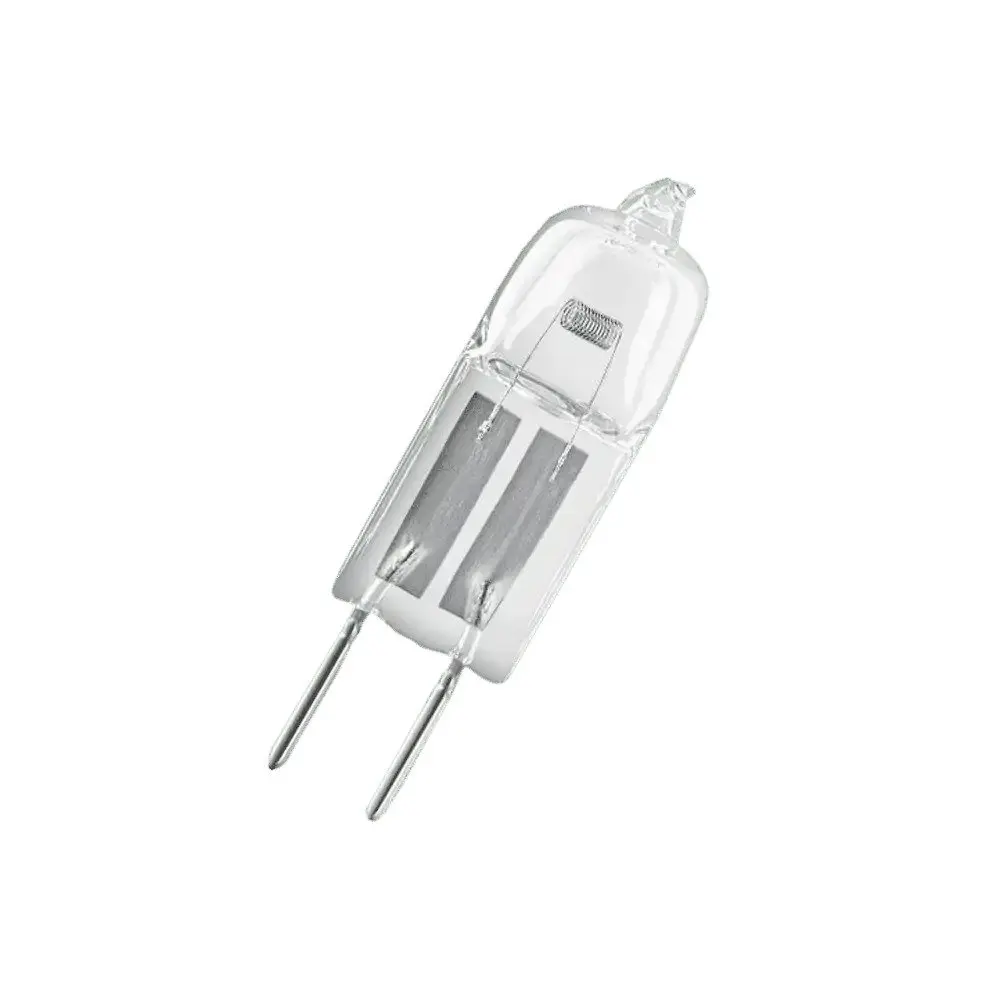

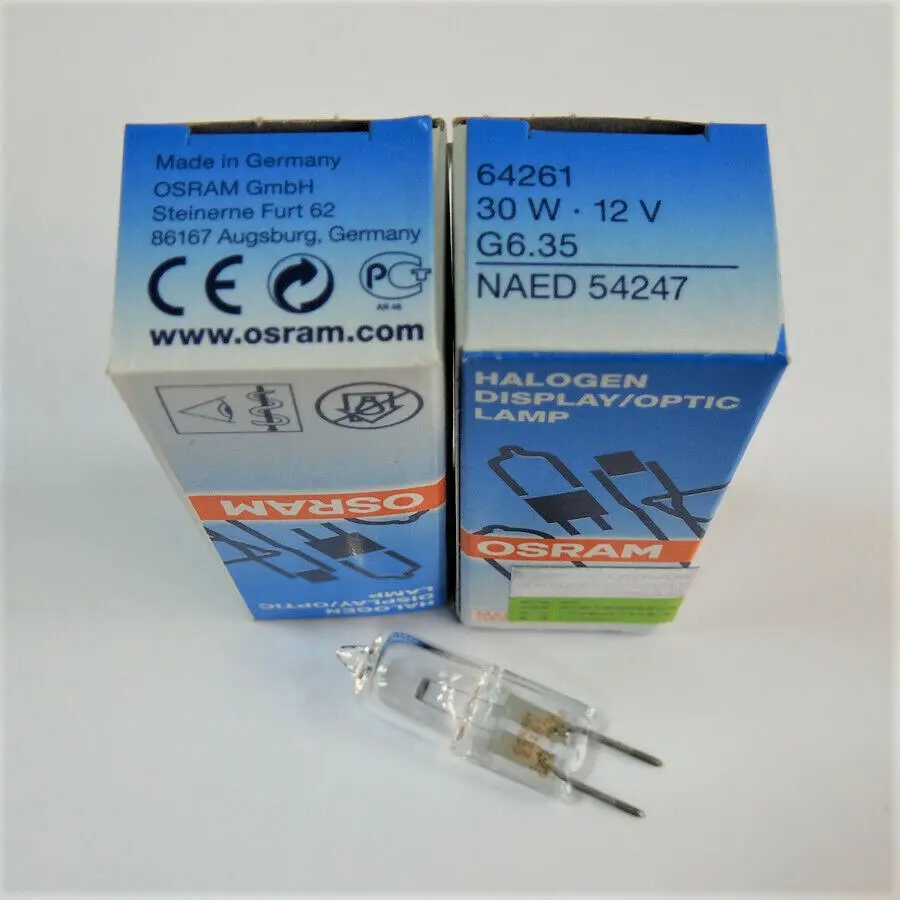

Osram 30W 12V G6.35 Microscope Lamp 64260 Germany

The OSRAM 64261 Halogen Display Optic Lamp 30W 12V G6.35 offers an extensive line of low voltage halogen lamps. The state-of-the-art processes provide precision filament alignment making these lamps ideal for applications that require accurate positioning, as in the medical and scientific markets. Lamps designed as HLX utilize Xenon gas in place of Krypton and provide up to 10% greater output over the life of the lamps.

Specialized; Microscopy, Laboratory & Analysis, UV Curing, Fiber Illumination, Surgical & Dental, Overhead, Club & Disco.

Technical Data

Country specific categorizations

Order reference: 64261 30W 12V G

LIF: M/130

Electrical data

Nominal voltage: 12.0 V

Nominal wattage: 30.00 W

Photometrical data

Color temperature: 3300 K

Nominal luminous flux: 750 lm

Color rendering index Ra: 100

Dimensions & weight

Diameter: 11.5 mm

Length: 44.0 mm

Light center length (LCL): 30.0 mm

Filament length: 2.60 mm

Illuminated field: 2.6*1.3 mm²

Filament diameter: 1.3 mm

Lifespan: 50 h

Additional product data

Base (standard designation): G6.35

Minimum diameter of lamp enclosure: 12 mm

Capabilities

Burning position: Any

Application Specialized; Microscopy, Laboratory & Analysis, UV Curing, Fiber Illumination, Surgical & Dental, Overhead, Club & Disco
