  3. OSRAM 24V 20W G6.35 halogen capsule bulb Germany
Default

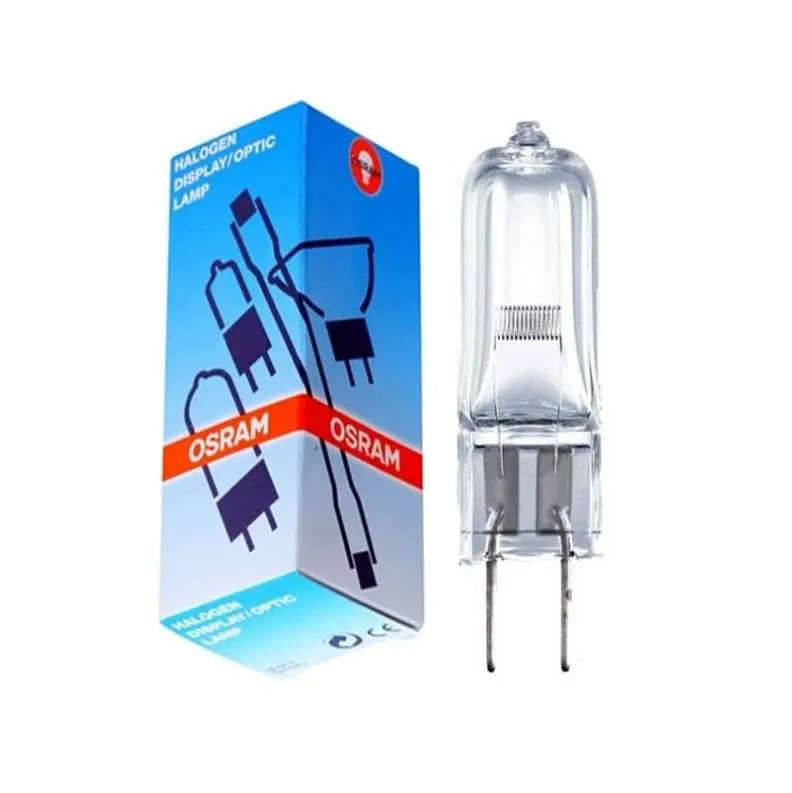

OSRAM 24V 20W G6.35 halogen capsule bulb Germany

OSRAM 24V 20W G6.35 halogen capsule bulb Germany

https://ledlightsbd.com/web/image/product.template/4232/image_1920?unique=0bc321a
(0 review)

540.00 ৳ 540.0 BDT 540.00 ৳

Call for Price: 01990300222

  • Brand
  • Made in

This combination does not exist.

​
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
20W G6.35 Osram helogen 24v

Product family features

  • Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
  • Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
  • HLX tungsten halogen low-voltage lamp with or without reflector
  • Dimmable (HLX)

Product family benefits

  • Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
  • Instant light (HLX)

Areas of application

  • Lamps for special luminaires
  • Medical fiber optics (HLX)

Technical Data

Country specific categorizations
Order reference

64638 HLX

Electrical data
Nominal voltage

24.0 V

Nominal wattage

20.00 W

Photometrical data

Color temperature

3100 K

Nominal luminous flux

1000 lm

Color rendering index Ra

100

Dimensions & weight

Diameter

13.0 mm

Length

50.0 mm

Light center length (LCL)

30.0 mm

Filament length

5.30 mm

Illuminated field

5.3*2.6 mm²

Filament diameter

2.6 mm

Lifespan
Lifespan

300 h

Additional product data

Base (standard designation)

G6.35

Minimum diameter of lamp enclosure

14 mm

Capabilities
Burning position

Any

Application

Other

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Warranty Claim: To avail of the product warranty, please retain the warranty card and the resalable product packaging.

Note: Delivery timelines may vary based on product availability in stock.

Disclaimer: Slight variations in product color may occur due to lighting conditions, photography, or your device's display settings.

Contact Us

Terms and Conditions
Brand Product Guaranteed.
7-day money-back guarantee.
Shipping: 1-2 Business Days.

Share

Specifications

Brand Osram
Made in Germany
Tags
Tags
20W G6.35 Osram helogen 24v
