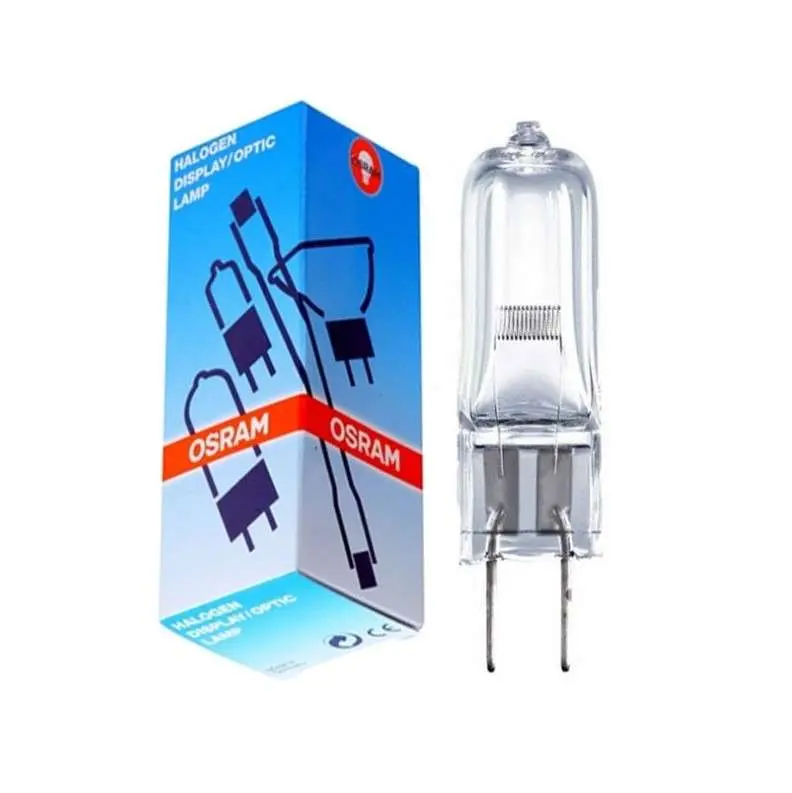

OSRAM 150W 24V GY6.35 halogen capsule bulb Germany

Technical Data

Product family features

• Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
• Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
• HLX tungsten halogen low-voltage lamp with or without reflector
• Dimmable (HLX)

Product family benefits

• Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
• Instant light (HLX)

Areas of application

• Lamps for special luminaires
• Medical fiber optics (HLX)

Country specific categorizations

Electrical data

Nominal voltage: 24.0 V

Nominal wattage: 150.00 W

Photometrical data

Color temperature: 3450 K

Nominal luminous flux: 5000 lm

Color rendering index Ra: 100

Dimensions & weight

Diameter: 15.0 mm

Length: 57.0 mm

Light center length (LCL): 33.5 mm

Filament length: 6.00 mm

Illuminated field: 6.0*3.0 mm²

Filament diameter: 3.0 mm

Lifespan

Lifespan: 100 h

Additional product data

Base (standard designation): GY6.35

Minimum diameter of lamp enclosure: 14 mm

Capabilities

Burning position: s90

Application: Other

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration: 07-04-2022

Primary Article Identifier: 4008321099648

Candidate List Substance 1

No declarable substances contained

Declaration No. in SCIP database

No declarable substances contained
