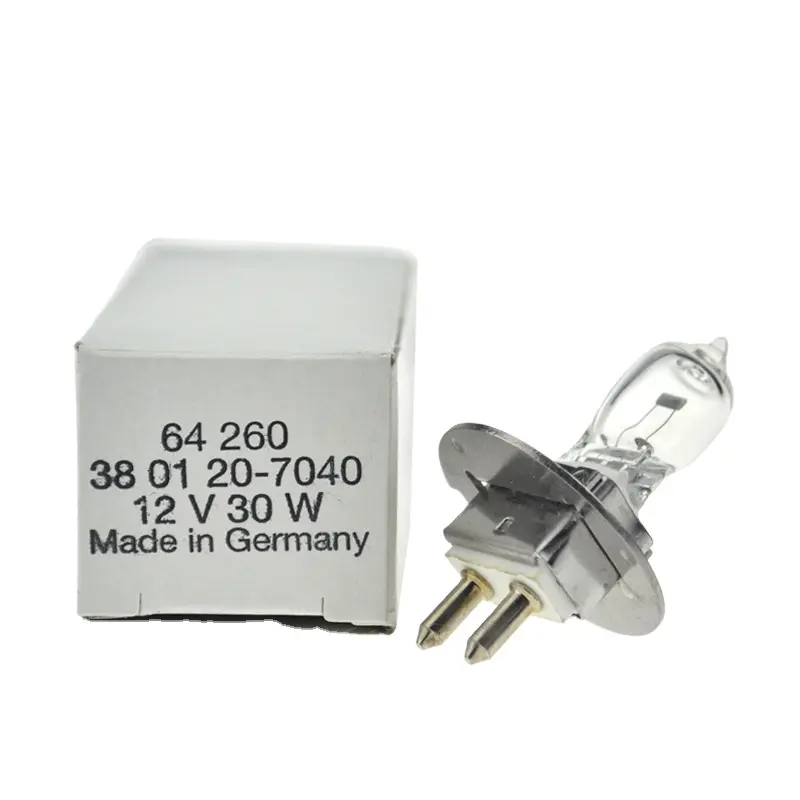

OSRAM 12V 30W PG22 halogen slit lamp-microscope light source bulb

• Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
• Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
• HLX tungsten halogen low-voltage lamp with or without reflector
• Dimmable (HLX)

• Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
• Instant light (HLX)

• Lamps for special luminaires
• Medical fiber optics (HLX)

Technical Data

Country specific categorizations

Order reference

64260 30W 12V P

LIF

M/185

Electrical data

Nominal voltage

12.0 V

Nominal wattage

30.00 W

Photometrical data

Color temperature

3300 K

Nominal luminous flux

800 lm

Color rendering index Ra

100

Dimensions & weight

Diameter

9 mm

Length

40.0 mm

Light center length (LCL)

14.0 mm

Filament length

2.60 mm

Illuminated field

2.6*1.3 mm²

Filament diameter

1.3 mm

Lifespan

Lifespan

50 h

Additional product data

Base (standard designation)

PG22

Minimum diameter of lamp enclosure

9 mm

Capabilities

Burning position

Any

Application

Other

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

19-01-2022

Primary Article Identifier

4050300099798 | 4008321074164

Candidate List Substance 1

No declarable substances contained

Declaration No. in SCIP database

No declarable substances contained
