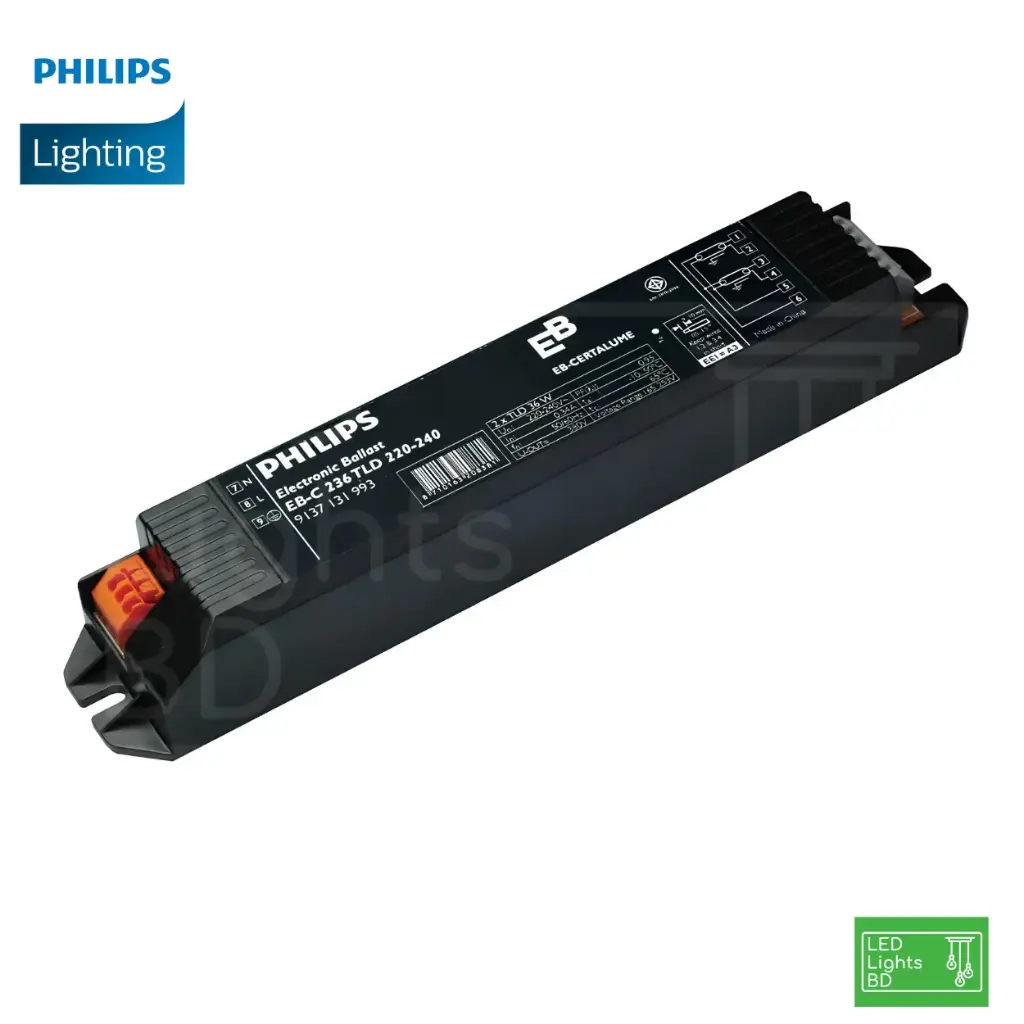

Philips 2x36W Electronic Ballast EBC236

Philips 2x36W Electronic Ballast EBC236

https://ledlightsbd.com/web/image/product.template/4398/image_1920?unique=b28f520
(0 review)

1,500.00 ৳ 1500.0 BDT 1,500.00 ৳

Call for Price: 01990300222

  • Brand
  • Made in

This combination does not exist.

​
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
philips electronic_ballast 2x36W ebc236

Specifications

General information
Type Version
2x36W T8 mk1
Lamp Type
TL-D
Number of Lamps
2 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
No
Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
42-60 kHz
Power Factor 100% Load (Nom)
0.97
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Nom)
0.5 mA
Power Losses (Nom)
8.0 W
Wiring
Connector Type Input Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Capacity Output Wires Mutual (Max)
120 pF
Color Input Terminals
Orange
Color Output Terminals
Grey
Connector Type Output Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Length Hot Wiring
0.75 m
Wire Striplength
9.0-10.0 mm
Dual Fixture Master/Slave
Possible, lamp wires 2m max. length  [ Master/Slave operation possible]
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Max)
120 pF
System characteristics
Rated Ballast-Lamp Power
36 W
Rated Lamp Power on TL-D
36 W
System Power on TL-D
69.7 W
Lamp Power on TL-D
61.6 W
Power Loss on TL-D
8.0 W
Temperature
T-Case Lifetime (Nom)
75 °C
Mechanical and housing
Housing
L 210x40x30
Emergency operation
Battery Voltage Lamp Ignition
165-253 V
Approval and application
Energy Efficiency Index
A2
IP Classification
IP 20  [ Ingress Protection 20]
Overvoltage Protection 276Vac
48 h
EMI 9 kHz … 30 MHz
EN55015
Vibration Standard
IEC68-2-6 F c
Download Data Sheet:
