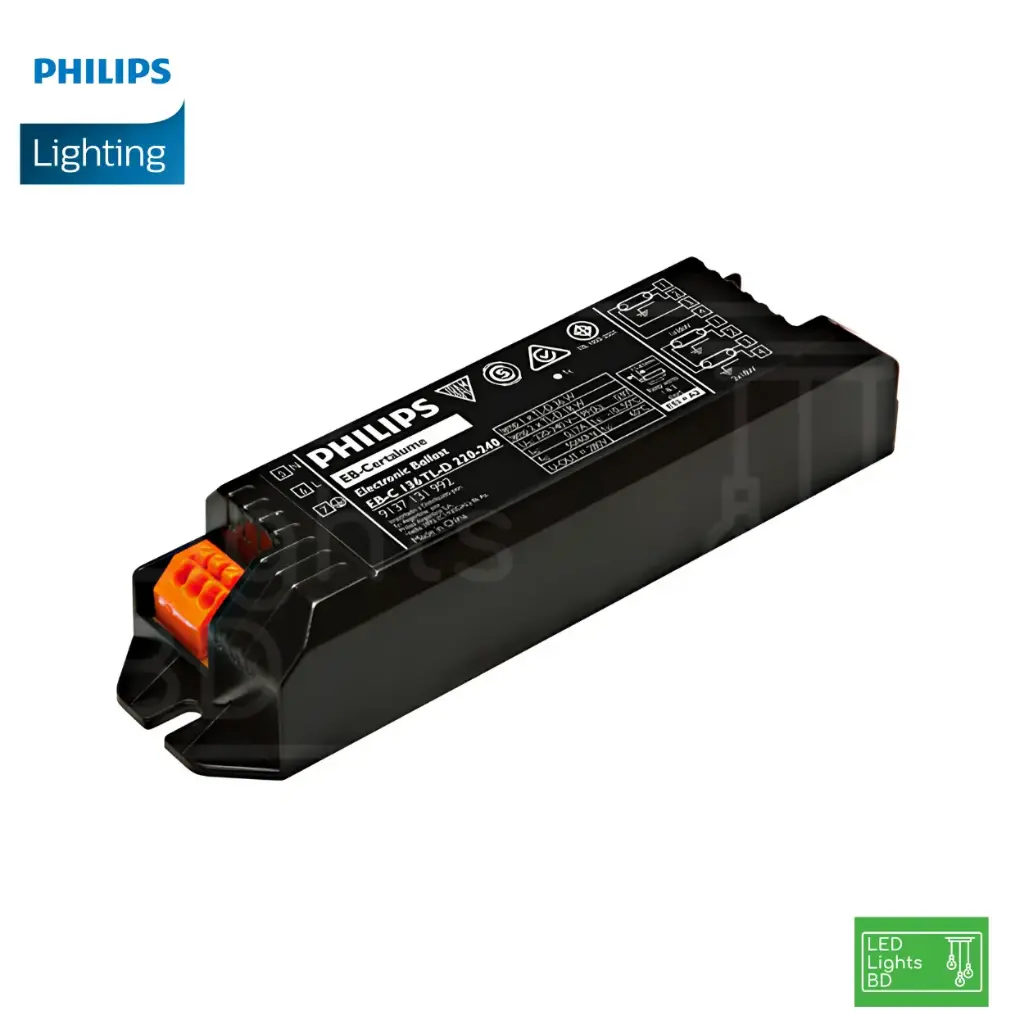

Philips 36W Electronic Ballast EBC136 (1X36W / 2X18W)

https://ledlightsbd.com/web/image/product.template/4424/image_1920?unique=b28f520
(0 review)

950.00 ৳ 950.0 BDT 950.00 ৳

Call for Price: 01990300222

  • Brand
  • Made in

This combination does not exist.

​
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
philips electronic_ballast EB-C ebc136 tld136

Philips EB-C 136 TL-D 220-240V 50/60Hz

Specifications

General information
Type Version
1x36W or 2x18W
Lamp Type
TL-D T8
Number of Lamps
36W-1 piece/18W-2 Piece
Number of Products on MCB (16A Type B) (Nom)
18
Automatic Restart
No
Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
42-60 kHz
Power Factor 100% Load (Nom)
0.95
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Nom)
0.7 mA
Power Losses (Nom)
4.4 W

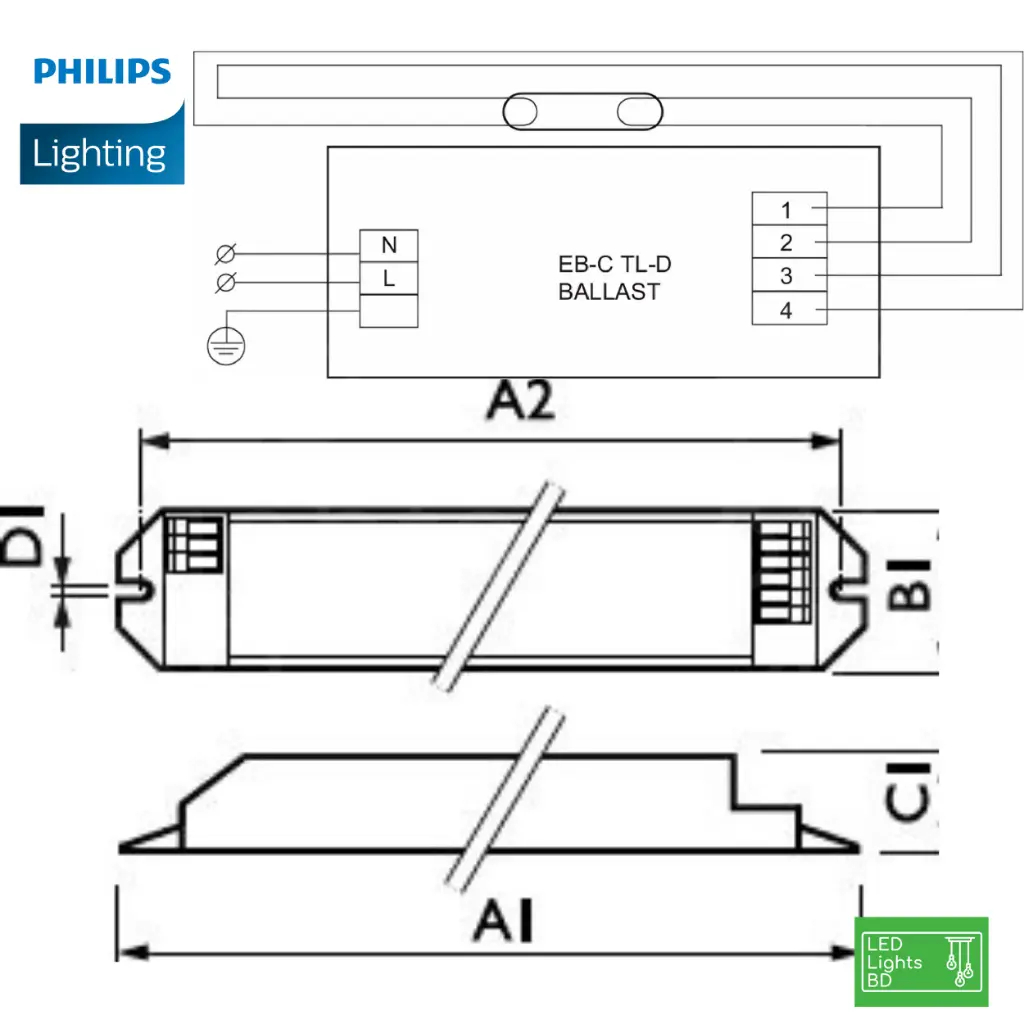

Wiring
Connector Type Input Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Capacity Output Wires Mutual (Max)
120 pF
Color Input Terminals
Orange
Color Output Terminals
Grey
Connector Type Output Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Length Hot Wiring
0.75 m
Wire Striplength
9.0-10.0 mm
Dual Fixture Master/Slave
Possible, lamp wires 2m max. length  [ Master/Slave operation possible]
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Max)
120 pF
System characteristics
Rated Ballast-Lamp Power
36 W
Rated Lamp Power on TL-D
36 W
System Power on TL-D
37 W
Lamp Power on TL-D
32.6 W
Power Loss on TL-D
4.4 W
Temperature
T-Case Lifetime (Nom)
75 °C
Mechanical and housing
Housing
L 150x40x28
Emergency operation
Battery Voltage Lamp Ignition
165-253 V
Approval and application
Energy Efficiency Index
A2
IP Classification
IP 20  [ Ingress Protection 20]
Overvoltage Protection 276Vac
48 h
EMI 9 kHz … 30 MHz
EN55015
Download Data Sheet:

Warranty Claim: To avail of the product warranty, please retain the warranty card and the resalable product packaging.

Note: Delivery timelines may vary based on product availability in stock.

Disclaimer: Slight variations in product color may occur due to lighting conditions, photography, or your device's display settings.

Contact Us

Terms and Conditions
Brand Product Guaranteed.
7-day money-back guarantee.
Shipping: 1-2 Business Days.

Share

Specifications

Brand Philips
Made in China
